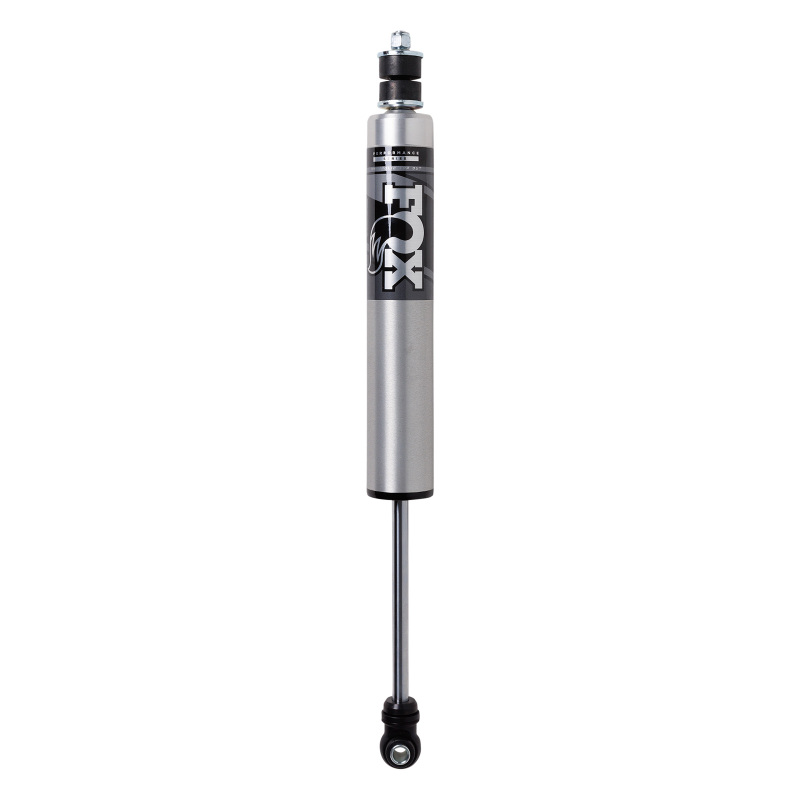

FOX 2.5 Performance Series HTO shock is a bolt-on shock loaded with position-sensitive technology vehicle-specific valving and larger pistons to improve on and off-road performance. A type II anodized aluminum body efficiently dissipates heat and prevents corrosion. The 2.5-inch shock body features an internal floating piston (IFP) to separate the shock oil from the high-pressure nitrogen optimizing damping. Hydraulic Top Out (HTO) technology offers usable position-sensitive rebound damping control on and off the pavement. HTO reduces harsh top-outs and increases comfort by forcing shock oil through a secondary shim stack to slow down shock shaft speed; HTO is particularly beneficial after installing heavier aggressive tires and applications lifted higher than OEM specification. Bolt-on 2.5 Performance Series HTO shocks to increase damping capacity and ride in comfort with position-sensitive rebound control.
This Part Fits:
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2014-2024 | Ram | 2500 | Big Horn |
| 2014-2024 | Ram | 2500 | Laramie |
| 2014-2015 | Ram | 2500 | Laramie Limited |
| 2014-2021 | Ram | 2500 | Laramie Longhorn |
| 2016-2024 | Ram | 2500 | Limited |
| 2021-2024 | Ram | 2500 | Limited Longhorn |
| 2014-2015,2019-2024 | Ram | 2500 | Lone Star |
| 2014-2016 | Ram | 2500 | Outdoorsman |
| 2014-2024 | Ram | 2500 | Power Wagon |
| 2023-2024 | Ram | 2500 | Rebel |
| 2014-2018 | Ram | 2500 | SLT |
| 2024 | Ram | 2500 | Special Service |
| 2014-2024 | Ram | 2500 | Tradesman |
| 2014-2024 | Ram | 3500 | Big Horn |
| 2014-2024 | Ram | 3500 | Laramie |
| 2014-2015 | Ram | 3500 | Laramie Limited |
| 2014-2020 | Ram | 3500 | Laramie Longhorn |
| 2016-2024 | Ram | 3500 | Limited |
| 2021-2024 | Ram | 3500 | Limited Longhorn |
| 2014-2015,2017,2019-2022 | Ram | 3500 | Lone Star |
| 2014-2024 | Ram | 3500 | SLT |
| 2024 | Ram | 3500 | Special Service |
| 2014-2024 | Ram | 3500 | Tradesman |
- MPN:
- 987-24-045
